YFP-CFP (his3) [plasmid pDH18]
Plasmid pDH18 is based on pDH3 and pDH5.
Forward and reverse primers refer to the
sequence of the primers described on the
protocol page "Fusing GFP to the Carboxy
Terminus of Your Favorite Protein." Some
common restriction enzyme sites are shown.
Unique sites are in red. His5 is from
S. pombe and complements His3 in
S. cerevisiae.

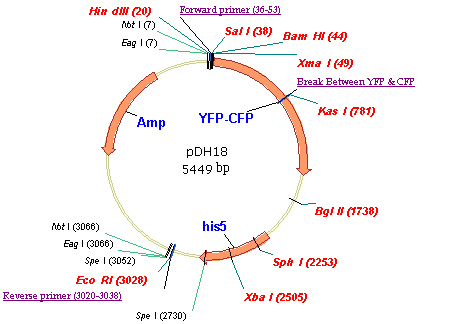

Map
Sequence
The DNA sequence of pDH18. The YFP sequence is in green, the CFP sequence is in blue.
gaacgcggccgccagctgaagcttcgtacgctgcaggtcgacggatccccgggttaattaacatggtgagtaa
aggagaagaacttttcactggagttgtcccaattcttgttgaattagatggtgatgttaatgggcacaaattt
tctgtcagtggagagggtgaaggtgatgcaacatacggaaaacttacccttaaatttatttgcactactggaa
aactacctgttccatggccaacacttgtcactactttcggttatggtctaaaatgctttgctagatacccaga
tcatatgaaacggcatgactttttcaagagtgccatgcccgaaggttatgtacaggaaagaactatatttttc
aaagatgacgggaactacaagacacgtgctgaagtcaagtttgaaggtgatacccttgttaatagaatcgagt
taaaaggtattgattttaaagaagatggaaacattcttggacacaaattggaatacaactataactcacacaa
tgtatacatcatggcagacaaacaaaagaatggaatcaaagttaacttcaaaattagacacaacattgaagat
ggaagcgttcaactagcagaccattatcaacaaaatactccaattggcgatggccctgtccttttaccagaca
accattacctgtcctatcaatctgccctttcgaaagatcccaacgaaaagagagaccacatggtccttcttga
gtttgtaacagctgctgggattacacatggcatggatgaactatacaaaggcgccagtaaaggagaagaactt
ttcactggagttgtcccaattcttgttgaattagatggtgatgttaatgggcacaaattttctgtcagtggag
agggtgaaggtgatgcaacatacggaaaacttacccttaaatttatttgcactactggaaaactacctgttcc
atggccaacacttgtcactactttgacttggggtgttcaatgcttttcaagatacccagatcatatgaaacgg
catgactttttcaagagtgccatgcccgaaggttatgtacaggaaagaactatatttttcaaagatgacggga
actacaagacacgtgctgaagtcaagtttgaaggtgatacccttgttaatagaatcgagttaaaaggtattga
ttttaaagaagatggaaacattcttggacacaaattggaatacaactatatttcacacaatgtatacatcact
gcagacaaacaaaagaatggaatcaaagctcatttcaaaattagacacaacattgaagatggaagcgttcaac
tagcagaccattatcaacaaaatactccaattggcgatggccctgtccttttaccagacaaccattacctgtc
cacacaatctgccctttcgaaagatcccaacgaaaagagagaccacatggtccttcttgagtttgtaacagct
gctgggattacacatggcatggatgaactatacaaatagggcgcgccacttctaaataagcgaatttcttatg
atttatgatttttattattaaataagttataaaaaaaataagtgtatacaaattttaaagtgactcttaggtt
ttaaaacgaaaattcttattcttgagtaactctttcctgtaggtcaggttgctttctcaggtatagtatgagg
tcgctcttattgaccacacctctaccggcagatccgctagggataacagggtaatatagatctgtttagcttg
cctcgtccccgccgggtcacccggccagcgacatggaggcccagaataccctccttgacagtcttgacgtgcg
cagctcaggggcatgatgtgactgtcgcccgtacatttagcccatacatccccatgtataatcatttgcatcc
atacattttgatggccgcacggcgcgaagcaaaaattacggctcctcgctgcagacctgcgagcagggaaacg
ctcccctcacagacgcgttgaattgtccccacgccgcgcccctgtagagaaatataaaaggttaggatttgcc
actgaggttcttctttcatatacttccttttaaaatcttgctaggatacagttctcacatcacatccgaacat
aaacaaccatgggtaggagggcttttgtagaaagaaatacgaacgaaacgaaaatcagcgttgccatcgcttt
ggacaaagctcccttacctgaagagtcgaattttattgatgaacttataacttccaagcatgcaaaccaaaag
ggagaacaagtaatccaagtagacacgggaattggattcttggatcacatgtatcatgcactggctaaacatg
caggctggagcttacgactttactcaagaggtgatttaatcatcgatgatcatcacactgcagaagatactgc
tattgcacttggtattgcattcaagcaggctatgggtaactttgccggcgttaaaagatttggacatgcttat
tgtccacttgacgaagctctttctagaagcgtagttgacttgtcgggacggccctatgctgttatcgatttgg
gattaaagcgtgaaaaggttggggaattgtcctgtgaaatgatccctcacttactatattccttttcggtagc
agctggaattactttgcatgttacctgcttatatggtagtaatgaccatcatcgtgctgaaagcgcttttaaa
tctctggctgttgccatgcgcgcggctactagtcttactggaagttctgaagtcccaagcacgaagggagtgt
tgtaaagagtactgacaataaaaagattcttgttttcaagaacttgtcatttgtatagtttttttatattgta
gttgttctattttaatcaaatgttagcgtgatttatattttttttcgcctcgacatcatctgcccagatgcga
agttaagtgcgcagaaagtaatatcatgcgtcaatcgtatgtgaatgctggtcgctatactgctgtcgattcg
atactaacgccgccatccagtttaaacgagctcgaattcatcgatgatatcagatccactagtggcctatgcg
gccgcggatctgccggtctccctatagtgagtcgtattaatttcgataagccaggttaacctgcattaatgaa
tcggccaacgcgcggggagaggcggtttgcgtattgggcgctcttccgcttcctcgctcactgactcgctgcg
ctcggtcgttcggctgcggcgagcggtatcagctcactcaaaggcggtaatacggttatccacagaatcaggg
gataacgcaggaaagaacatgtgagcaaaaggccagcaaaaggccaggaaccgtaaaaaggccgcgttgctgg
cgtttttccataggctccgcccccctgacgagcatcacaaaaatcgacgctcaagtcagaggtggcgaaaccc
gacaggactataaagataccaggcgtttccccctggaagctccctcgtgcgctctcctgttccgaccctgccg
cttaccggatacctgtccgcctttctcccttcgggaagcgtggcgctttctcaatgctcacgctgtaggtatc
tcagttcggtgtaggtcgttcgctccaagctgggctgtgtgcacgaaccccccgttcagcccgaccgctgcgc
cttatccggtaactatcgtcttgagtccaacccggtaagacacgacttatcgccactggcagcagccactggt
aacaggattagcagagcgaggtatgtaggcggtgctacagagttcttgaagtggtggcctaactacggctaca
ctagaaggacagtatttggtatctgcgctctgctgaagccagttaccttcggaaaaagagttggtagctcttg
atccggcaaacaaaccaccgctggtagcggtggtttttttgtttgcaagcagcagattacgcgcagaaaaaaa
ggatctcaagaagatcctttgatcttttctacggggtctgacgctcagtggaacgaaaactcacgttaaggga
ttttggtcatgagattatcaaaaaggatcttcacctagatccttttaaattaaaaatgaagttttaaatcaat
ctaaagtatatatgagtaaacttggtctgacagttaccaatgcttaatcagtgaggcacctatctcagcgatc
tgtctatttcgttcatccatagttgcctgactccccgtcgtgtagataactacgatacgggagggcttaccat
ctggccccagtgctgcaatgataccgcgagacccacgctcaccggctccagatttatcagcaataaaccagcc
agccggaagggccgagcgcagaagtggtcctgcaactttatccgcctccatccagtctattaattgttgccgg
gaagctagagtaagtagttcgccagttaatagtttgcgcaacgttgttgccattgctacaggcatcgtggtgt
cacgctcgtcgtttggtatggcttcattcagctccggttcccaacgatcaaggcgagttacatgatcccccat
gttgtgcaaaaaagcggttagctccttcggtcctccgatcgttgtcagaagtaagttggccgcagtgttatca
ctcatggttatggcagcactgcataattctcttactgtcatgccatccgtaagatgcttttctgtgactggtg
agtactcaaccaagtcattctgagaatagtgtatgcggcgaccgagttgctcttgcccggcgtcaatacggga
taataccgcgccacatagcagaactttaaaagtgctcatcattggaaaacgttcttcggggcgaaaactctca
aggatcttaccgctgttgagatccagttcgatgtaacccactcgtgcacccaactgatcttcagcatctttta
ctttcaccagcgtttctgggtgagcaaaaacaggaaggcaaaatgccgcaaaaaagggaataagggcgacacg
gaaatgttgaatactcatactcttcctttttcaatattattgaagcatttatcagggttattgtctcatgagc
ggatacatatttgaatgtatttagaaaaataaacaaataggggttccgcgcacatttccccgaaaagtgccac
ctgacgtctaagaaaccattattatcatgacattaacctataaaaataggcgtatcacgaggccctttcgtct
cgcgcgtttcggtgatgacggtgaaaacctctgacacatgcagctcccggagacggtcacagcttgtctgtaa
gcggatgccgggagcagacaagcccgtcagggcgcgtcagcgggtgttggcgggtgtcggggctggcttaact
atgcggcatcagagcagattgtactgagagtgcaccatatggacatattgtcgttagaacgcggctacaatta
atacataaccttatgtatcatacacatacgatttaggtgacactata
