(kan) YFP [plasmid pDH22]
Plasmid pDH22 is based upon pyGFP described in
Prein et al.
Plasmid pDH22 is coupled with pSH47 to introduce
YFP at the N-terminal end of a protein as described
in the Prein et al. paper. The mutations described for
pDH5 were introduced into pyGFP to convert the GFP to
YFP. Some common restriction enzyme sites are shown.
The sequence of the forward primer is cggccgccagggg.
The sequence of the reverse primer is tttgtacaattcatccataccatggg.

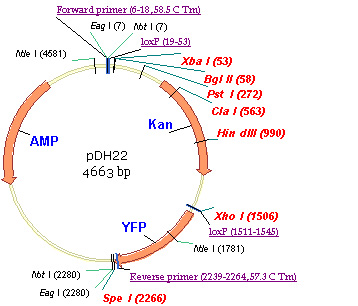

Map
Sequence
The DNA sequence of pDH22. The YFP sequence is in green.
gaacgcggccgccaggggataacttcgtatagcatacattatacgaagttatctagagatctgtttagcttgcctcgtcc
ccgccgggtcacccggccagcgacatggaggcccagaataccctccttgacagtcttgacgtgcgcagctcaggggcatg
atgtgactgtcgcccgtacatttagcccatacatccccatgtataatcatttgcatccatacattttgatggccgcacgg
cgcgaagcaaaaattacggctcctcgctgcagacctgcgagcagggaaacgctcccctcacagacgcgttgaattgtccc
cacgccgcgcccctgtagagaaatataaaaggttaggatttgccactgaggttcttctttcatatacttccttttaaaat
cttgctaggatacagttctcacatcacatccgaacataaacaaccatgggtaaggaaaagactcacgtttcgaggccgcg
attaaattccaacatggatgctgatttatatgggtataaatgggctcgcgataatgtcgggcaatcaggtgcgacaatct
atcgattgtatgggaagcccgatgcgccagagttgtttctgaaacatggcaaaggtagcgttgccaatgatgttacagat
gagatggtcagactaaactggctgacggaatttatgcctcttccgaccatcaagcattttatccgtactcctgatgatgc
atggttactcaccactgcgatccccggcaaaacagcattccaggtattagaagaatatcctgattcaggtgaaaatattg
ttgatgcgctggcagtgttcctgcgccggttgcattcgattcctgtttgtaattgtccttttaacagcgatcgcgtattt
cgtctcgctcaggcgcaatcacgaatgaataacggtttggttgatgcgagtgattttgatgacgagcgtaatggctggcc
tgttgaacaagtctggaaagaaatgcataagcttttgccattctcaccggattcagtcgtcactcatggtgatttctcac
ttgataaccttatttttgacgaggggaaattaataggttgtattgatgttggacgagtcggaatcgcagaccgataccag
gatcttgccatcctatggaactgcctcggtgagttttctccttcattacagaaacggctttttcaaaaatatggtattga
taatcctgatatgaataaattgcagtttcatttgatgctcgatgagtttttctaatcagtactgacaataaaaagattct
tgttttcaagaacttgtcatttgtatagtttttttatattgtagttgttctattttaatcaaatgttagcgtgatttata
ttttttttcgcctcgacatcatctgcccagatgcgaagttaagtgcgcagaaagtaatatcatgcgtcaatcgtatgtga
atgctggtcgctatactgctgtcgattcgatactaacgccgccatccagtgtcgaaaacgagctctcgagataacttcgt
atagcatacattatacgaagttatcagatcatgtctaaaggtgaagaattattcactggtgttgtcccaattttggttga
attagatggtgatgttaatggtcacaaattttctgtctccggtgaaggtgaaggtgatgctacttacggtaaattgacct
taaaatttatttgtactactggtaaattgccagttccatggccaaccttagtcactactttcggttatggtctaaaatgt
tttgctagatacccagatcatatgaaacaacatgactttttcaagtctgccatgccagaaggttatgttcaagaaagaac
tatttttttcaaagatgacggtaactacaagaccagagctgaagtcaagtttgaaggtgataccttagttaatagaatcg
aattaaaaggtattgattttaaagaagatggtaacattttaggtcacaaattggaatacaactataactctcacaatgtt
tacatcatggctgacaaacaaaagaatggtatcaaagttaacttcaaaattagacacaacattgaagatggttctgttca
attagctgaccattatcaacaaaatactccaattggtgatggtccagtcttgttaccagacaaccattacttatcctatc
aatctgccttatccaaagatccaaacgaaaagagagaccacatggtcttgttagaatttgttactgctgctggtattacc
catggtatggatgaattgtacaaactagtggcctatgcggccgcggatctgccggtctccctatagtgagtcgtattaa
tttcgataagccaggttaacctgcattaatgaatcggccaacgcgcggggagaggcggtttgcgtattgggcgctcttcc
gcttcctcgctcactgactcgctgcgctcggtcgttcggctgcggcgagcggtatcagctcactcaaaggcggtaatacg
gttatccacagaatcaggggataacgcaggaaagaacatgtgagcaaaaggccagcaaaaggccaggaaccgtaaaaagg
ccgcgttgctggcgtttttccataggctccgcccccctgacgagcatcacaaaaatcgacgctcaagtcagaggtggcga
aacccgacaggactataaagataccaggcgtttccccctggaagctccctcgtgcgctctcctgttccgaccctgccgct
taccggatacctgtccgcctttctcccttcgggaagcgtggcgctttctcaatgctcacgctgtaggtatctcagttcgg
tgtaggtcgttcgctccaagctgggctgtgtgcacgaaccccccgttcagcccgaccgctgcgccttatccggtaactat
cgtcttgagtccaacccggtaagacacgacttatcgccactggcagcagccactggtaacaggattagcagagcgaggta
tgtaggcggtgctacagagttcttgaagtggtggcctaactacggctacactagaaggacagtatttggtatctgcgctc
tgctgaagccagttaccttcggaaaaagagttggtagctcttgatccggcaaacaaaccaccgctggtagcggtggtttt
tttgtttgcaagcagcagattacgcgcagaaaaaaaggatctcaagaagatcctttgatcttttctacggggtctgacgc
tcagtggaacgaaaactcacgttaagggattttggtcatgagattatcaaaaaggatcttcacctagatccttttaaatt
aaaaatgaagttttaaatcaatctaaagtatatatgagtaaacttggtctgacagttaccaatgcttaatcagtgaggca
cctatctcagcgatctgtctatttcgttcatccatagttgcctgactccccgtcgtgtagataactacgatacgggaggg
cttaccatctggccccagtgctgcaatgataccgcgagacccacgctcaccggctccagatttatcagcaataaaccagc
cagccggaagggccgagcgcagaagtggtcctgcaactttatccgcctccatccagtctattaattgttgccgggaagct
agagtaagtagttcgccagttaatagtttgcgcaacgttgttgccattgctacaggcatcgtggtgtcacgctcgtcgtt
tggtatggcttcattcagctccggttcccaacgatcaaggcgagttacatgatcccccatgttgtgcaaaaaagcggtta
gctccttcggtcctccgatcgttgtcagaagtaagttggccgcagtgttatcactcatggttatggcagcactgcataat
tctcttactgtcatgccatccgtaagatgcttttctgtgactggtgagtactcaaccaagtcattctgagaatagtgtat
gcggcgaccgagttgctcttgcccggcgtcaatacgggataataccgcgccacatagcagaactttaaaagtgctcatca
ttggaaaacgttcttcggggcgaaaactctcaaggatcttaccgctgttgagatccagttcgatgtaacccactcgtgca
cccaactgatcttcagcatcttttactttcaccagcgtttctgggtgagcaaaaacaggaaggcaaaatgccgcaaaaaa
gggaataagggcgacacggaaatgttgaatactcatactcttcctttttcaatattattgaagcatttatcagggttatt
gtctcatgagcggatacatatttgaatgtatttagaaaaataaacaaataggggttccgcgcacatttccccgaaaagtg
ccacctgacgtctaagaaaccattattatcatgacattaacctataaaaataggcgtatcacgaggccctttcgtctcgc
gcgtttcggtgatgacggtgaaaacctctgacacatgcagctcccggagacggtcacagcttgtctgtaagcggatgccg
ggagcagacaagcccgtcagggcgcgtcagcgggtgttggcgggtgtcggggctggcttaactatgcggcatcagagcag
attgtactgagagtgcaccatatggacatattgtcgttagaacgcggctacaattaatacataaccttatgtatcataca
catacgatttaggtgacactata
