Cloning vectors (pOBD2)

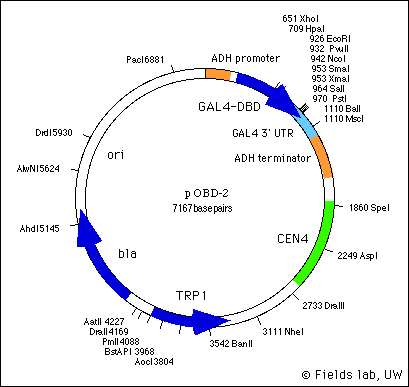

DNA binding domain vector: pOBD2 (with uniques restriction sites and main features
Sequence features:
- DH1 promoter: 1-298 (at least; region of homology when searched against SGD)
- GAL4-DBD: 434-982
- ADH1 terminator: 1221-1687 (at least; region of homology to SGD genom. seq.)
- beta lactamase (amp resistance): 4363-5220
- TRP1: 3379-4050
- CEN4: 1814-2667
Cloning site (position 877-1012):
C
TAT CTA TTC GAT GAT GAA GAT ACC CCA CCA AAC CCA AAA AAA GAG ATC GAA
TTC CAG CTG ACC ACC
ATG
GCA
ATT CCC GGG GAT CCG
TCG ACC TGC AGA GAT CTA TGA ATC GTA GAT ACT GAA AAA CCC CGC AAG
This sequence corresponds exactly to the two re-PCR primers (green + blue = forward primer, pink + black = reverse primer). The two restriction sites for linearizing pOBD2 (PvuII = CAGCTG and NcoI = CCATGG) are underlined. In the 4 bp-region of mixed color (blue and pink) the two primer sequences overlap).
The green and blue sequences here correspond to the red and grey sequences in the figure below. Pink and black correspond to beige and grey (sorry for the confusing color codes).
