Plasmid pBS7

Plasmid pBS7 is built from pDH6 except YFP has been mutated to the Venus variant. Those mutations are described in "A variant of yellow fluorescent protein with fast and efficient maturation for cell-biological applications" by Nagai, Ibata, Park, Kubota, Mikoshiba and Miyawaki in Nat Biotechnol 2002 Jan;20(1):87-90. In addition we have included Q69M, a mutation briefly mentioned in the Nagai et al. paper as potentially beneficial, although not necessary for the enhanced maturation.
Forward and reverse primers refer to the sequence of the primers described on the protocol page "Fusing GFP to the Carboxy Terminus of Your Favorite Protein". Some common restriction enzyme sites are shown. Unique sites are in red.

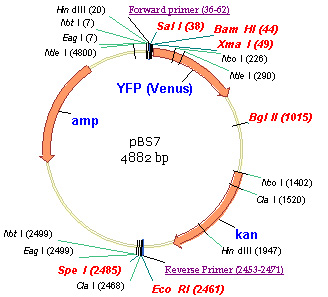

Map

Mutations

F46L, F64L, S65G, V68L, Q69M, S72A, Q80R, M153T, V163A, S175G, T203Y
*Q80R is believed to be a neutral mutation.

Sequence

The DNA sequence of pBS7 is shown below with the Venus sequence in green.
gaacgcggccgccagctgaagcttcgtacgctgcaggtcgacggatccccgggttaattaacagtaaaggagaagaacttttcactggagttgtcccaat tcttgttgaattagatggtgatgttaatgggcacaaattttctgtcagtggagagggtgaaggtgatgcaacatacggaaaacttacccttaaattgatt tgcactactggaaaactacctgttccatggccaacacttgtcactactttgggttatggtctaatgtgctttgctagatacccagatcatatgaaacggc atgactttttcaagagtgccatgcccgaaggttatgtacaggaaagaactatatttttcaaagatgacgggaactacaagacacgtgctgaagtcaagtt tgaaggtgatacccttgttaatagaatcgagttaaaaggtattgattttaaagaagatggaaacattcttggacacaaattggaatacaactataactca cacaatgtatacatcactgcagacaaacaaaagaatggaatcaaagctaacttcaaaattagacacaacattgaagatggaggtgttcaactagcagacc attatcaacaaaatactccaattggcgatggccctgtccttttaccagacaaccattacctgtcctatcaatctgccctttcgaaagatcccaacgaaaa gagagaccacatggtccttcttgagtttgtaacagctgctgggattacacatggcatggatgaactatacaaatagggcgcgccacttctaaataagcga atttcttatgatttatgatttttattattaaataagttataaaaaaaataagtgtatacaaattttaaagtgactcttaggttttaaaacgaaaattctt attcttgagtaactctttcctgtaggtcaggttgctttctcaggtatagtatgaggtcgctcttattgaccacacctctaccggcagatccgctagggat aacagggtaatatagatctgtttagcttgcctcgtccccgccgggtcacccggccagcgacatggaggcccagaataccctccttgacagtcttgacgtg cgcagctcaggggcatgatgtgactgtcgcccgtacatttagcccatacatccccatgtataatcatttgcatccatacattttgatggccgcacggcgc gaagcaaaaattacggctcctcgctgcagacctgcgagcagggaaacgctcccctcacagacgcgttgaattgtccccacgccgcgcccctgtagagaaa tataaaaggttaggatttgccactgaggttcttctttcatatacttccttttaaaatcttgctaggatacagttctcacatcacatccgaacataaacaa ccatgggtaaggaaaagactcacgtttcgaggccgcgattaaattccaacatggatgctgatttatatgggtataaatgggctcgcgataatgtcgggca atcaggtgcgacaatctatcgattgtatgggaagcccgatgcgccagagttgtttctgaaacatggcaaaggtagcgttgccaatgatgttacagatgag atggtcagactaaactggctgacggaatttatgcctcttccgaccatcaagcattttatccgtactcctgatgatgcatggttactcaccactgcgatcc ccggcaaaacagcattccaggtattagaagaatatcctgattcaggtgaaaatattgttgatgcgctggcagtgttcctgcgccggttgcattcgattcc tgtttgtaattgtccttttaacagcgatcgcgtatttcgtctcgctcaggcgcaatcacgaatgaataacggtttggttgatgcgagtgattttgatgac gagcgtaatggctggcctgttgaacaagtctggaaagaaatgcataagcttttgccattctcaccggattcagtcgtcactcatggtgatttctcacttg ataaccttatttttgacgaggggaaattaataggttgtattgatgttggacgagtcggaatcgcagaccgataccaggatcttgccatcctatggaactg cctcggtgagttttctccttcattacagaaacggctttttcaaaaatatggtattgataatcctgatatgaataaattgcagtttcatttgatgctcgat gagtttttctaatcagtactgacaataaaaagattcttgttttcaagaacttgtcatttgtatagtttttttatattgtagttgttctattttaatcaaa tgttagcgtgatttatattttttttcgcctcgacatcatctgcccagatgcgaagttaagtgcgcagaaagtaatatcatgcgtcaatcgtatgtgaatg ctggtcgctatactgctgtcgattcgatactaacgccgccatccagtttaaacgagctcgaattcatcgatgatatcagatccactagtggcctatgcgg ccgcggatctgccggtctccctatagtgagtcgtattaatttcgataagccaggttaacctgcattaatgaatcggccaacgcgcggggagaggcggttt gcgtattgggcgctcttccgcttcctcgctcactgactcgctgcgctcggtcgttcggctgcggcgagcggtatcagctcactcaaaggcggtaatacgg ttatccacagaatcaggggataacgcaggaaagaacatgtgagcaaaaggccagcaaaaggccaggaaccgtaaaaaggccgcgttgctggcgtttttcc ataggctccgcccccctgacgagcatcacaaaaatcgacgctcaagtcagaggtggcgaaacccgacaggactataaagataccaggcgtttccccctgg aagctccctcgtgcgctctcctgttccgaccctgccgcttaccggatacctgtccgcctttctcccttcgggaagcgtggcgctttctcaatgctcacgc tgtaggtatctcagttcggtgtaggtcgttcgctccaagctgggctgtgtgcacgaaccccccgttcagcccgaccgctgcgccttatccggtaactatc gtcttgagtccaacccggtaagacacgacttatcgccactggcagcagccactggtaacaggattagcagagcgaggtatgtaggcggtgctacagagtt cttgaagtggtggcctaactacggctacactagaaggacagtatttggtatctgcgctctgctgaagccagttaccttcggaaaaagagttggtagctct tgatccggcaaacaaaccaccgctggtagcggtggtttttttgtttgcaagcagcagattacgcgcagaaaaaaaggatctcaagaagatcctttgatct tttctacggggtctgacgctcagtggaacgaaaactcacgttaagggattttggtcatgagattatcaaaaaggatcttcacctagatccttttaaatta aaaatgaagttttaaatcaatctaaagtatatatgagtaaacttggtctgacagttaccaatgcttaatcagtgaggcacctatctcagcgatctgtcta tttcgttcatccatagttgcctgactccccgtcgtgtagataactacgatacgggagggcttaccatctggccccagtgctgcaatgataccgcgagacc cacgctcaccggctccagatttatcagcaataaaccagccagccggaagggccgagcgcagaagtggtcctgcaactttatccgcctccatccagtctat taattgttgccgggaagctagagtaagtagttcgccagttaatagtttgcgcaacgttgttgccattgctacaggcatcgtggtgtcacgctcgtcgttt ggtatggcttcattcagctccggttcccaacgatcaaggcgagttacatgatcccccatgttgtgcaaaaaagcggttagctccttcggtcctccgatcg ttgtcagaagtaagttggccgcagtgttatcactcatggttatggcagcactgcataattctcttactgtcatgccatccgtaagatgcttttctgtgac tggtgagtactcaaccaagtcattctgagaatagtgtatgcggcgaccgagttgctcttgcccggcgtcaatacgggataataccgcgccacatagcaga actttaaaagtgctcatcattggaaaacgttcttcggggcgaaaactctcaaggatcttaccgctgttgagatccagttcgatgtaacccactcgtgcac ccaactgatcttcagcatcttttactttcaccagcgtttctgggtgagcaaaaacaggaaggcaaaatgccgcaaaaaagggaataagggcgacacggaa atgttgaatactcatactcttcctttttcaatattattgaagcatttatcagggttattgtctcatgagcggatacatatttgaatgtatttagaaaaat aaacaaataggggttccgcgcacatttccccgaaaagtgccacctgacgtctaagaaaccattattatcatgacattaacctataaaaataggcgtatca cgaggccctttcgtctcgcgcgtttcggtgatgacggtgaaaacctctgacacatgcagctcccggagacggtcacagcttgtctgtaagcggatgccgg gagcagacaagcccgtcagggcgcgtcagcgggtgttggcgggtgtcggggctggcttaactatgcggcatcagagcagattgtactgagagtgcaccat atggacatattgtcgttagaacgcggctacaattaatacataaccttatgtatcatacacatacgatttaggtgacactata
